Features：

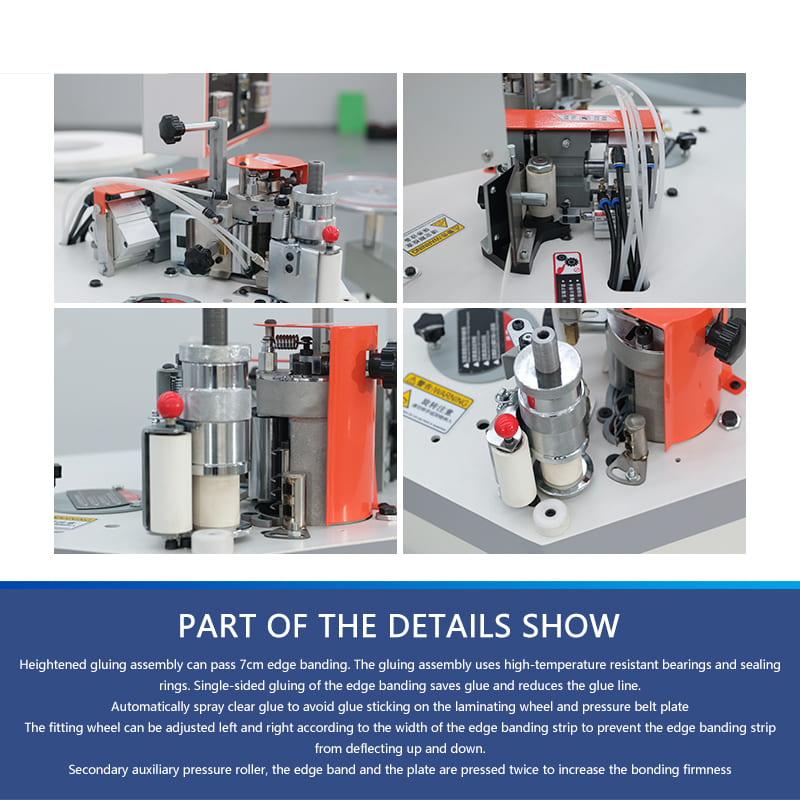

·Increase the height of the glue coating assembly, which uses high-temperature resistant bearings and sealing rings

·It can pass 7cm edge banding strip and apply glue on one side of the edge banding strip, which saves glue and has a small glue line.

·Lower glue pot, enlarge the glue pot to 2800ml to avoid adding glue multiple times.

·Extended button for convenient and intuitive glue volume adjustment

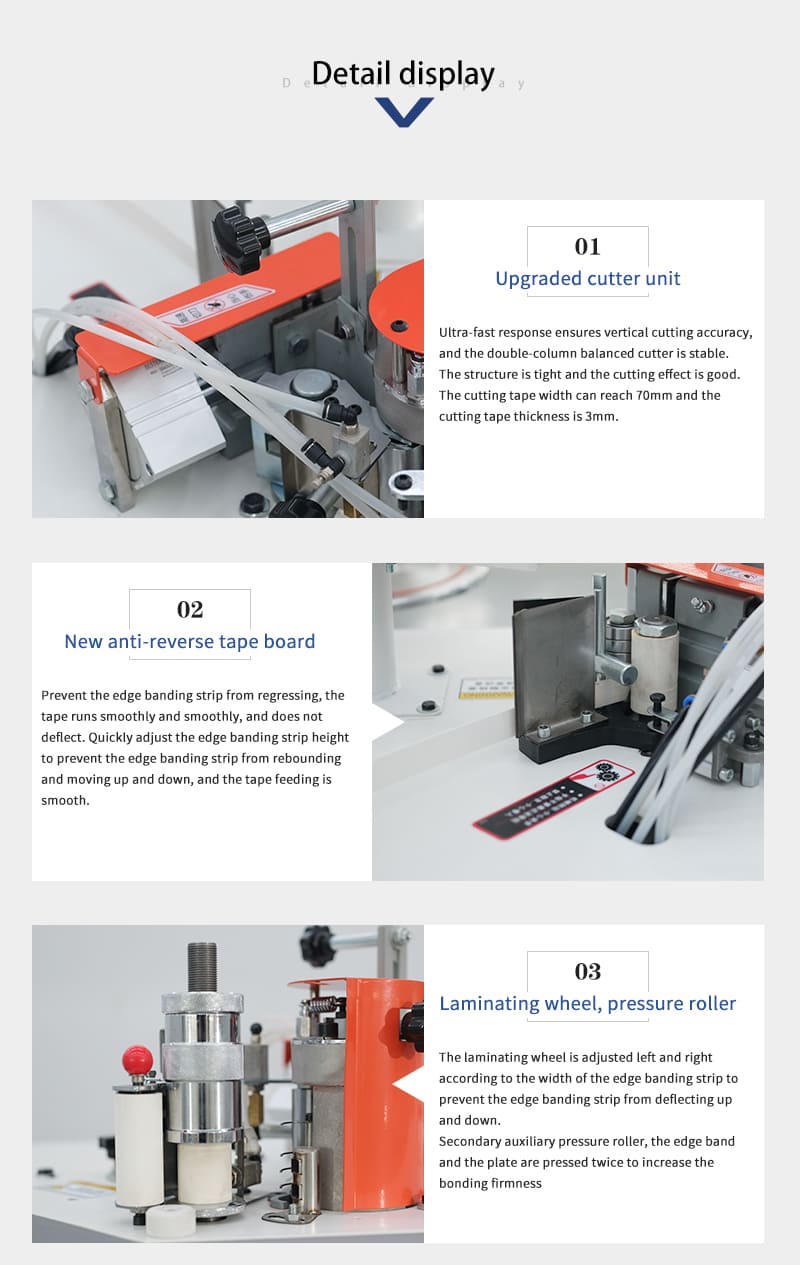

·Upgraded cutter unit, ultra-fast response, ensuring vertical cutting accuracy, double-column balanced cutter stability,

·The structure is tight and the cutting effect is good. The cutting tape width can reach 70mm and the cutting tape thickness is 3mm.

·The U-shaped groove-limited new anti-reverse belt conveying plate prevents the edge strip from regressing, making the belt run smoothly and smoothly without deviation. It can quickly adjust the height of the edge strip to prevent the edge strip from rebounding and moving up and down, and the belt feeds smoothly.

·Two glue clearing devices automatically spray glue clearing agent to avoid glue sticking on the laminating wheel and the pressure belt plate.

·The fitting wheel can be adjusted left and right according to the width of the edge banding strip to prevent the edge banding strip from deflecting up and down.

·Secondary auxiliary pressure roller, the edge band and the plate are pressed twice to increase the bonding firmness

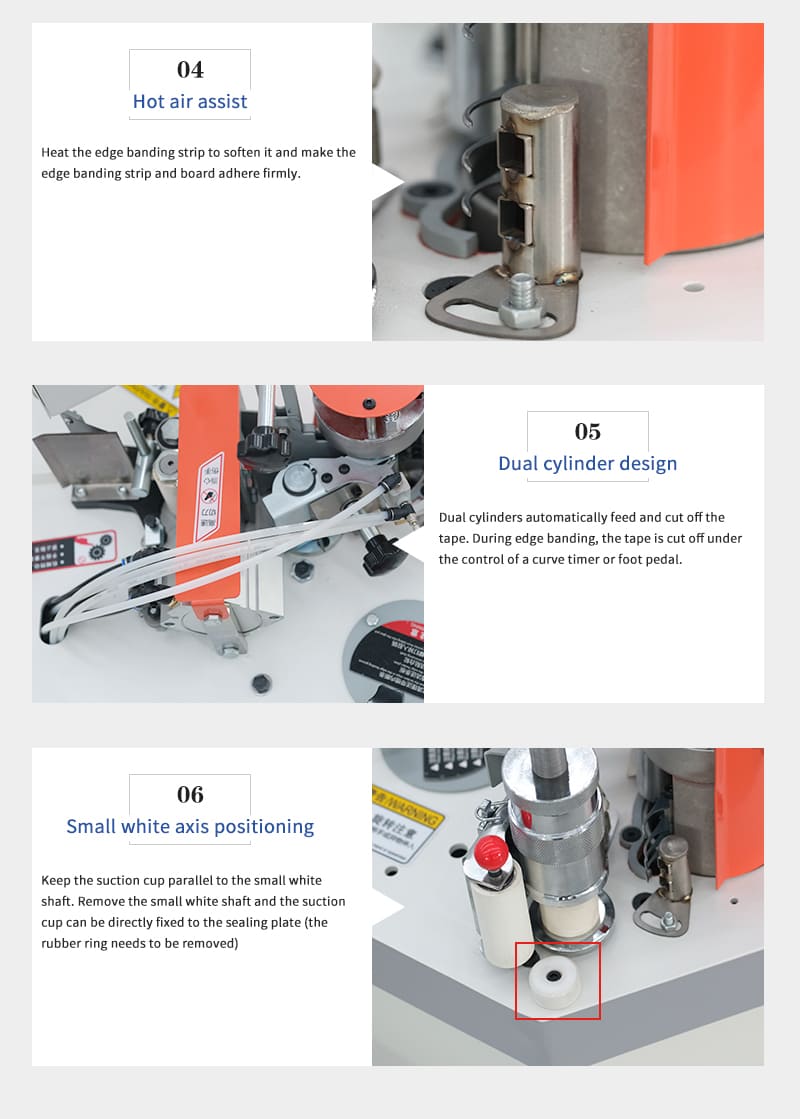

·Hot air assists to heat the edge banding strip, soften the edge banding strip, and make the edge banding strip and the board firmly adhere to each other.

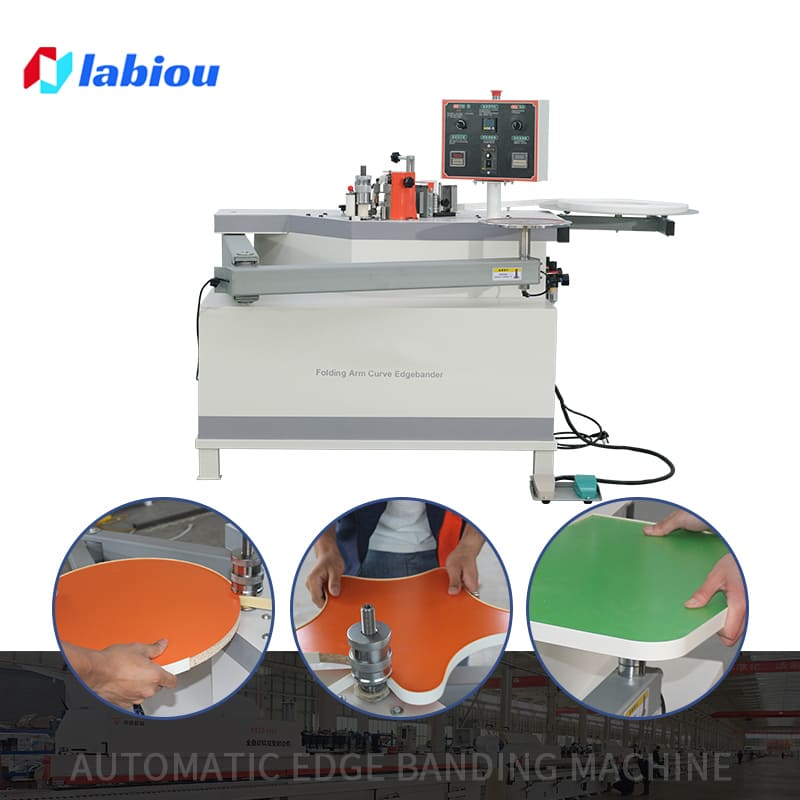

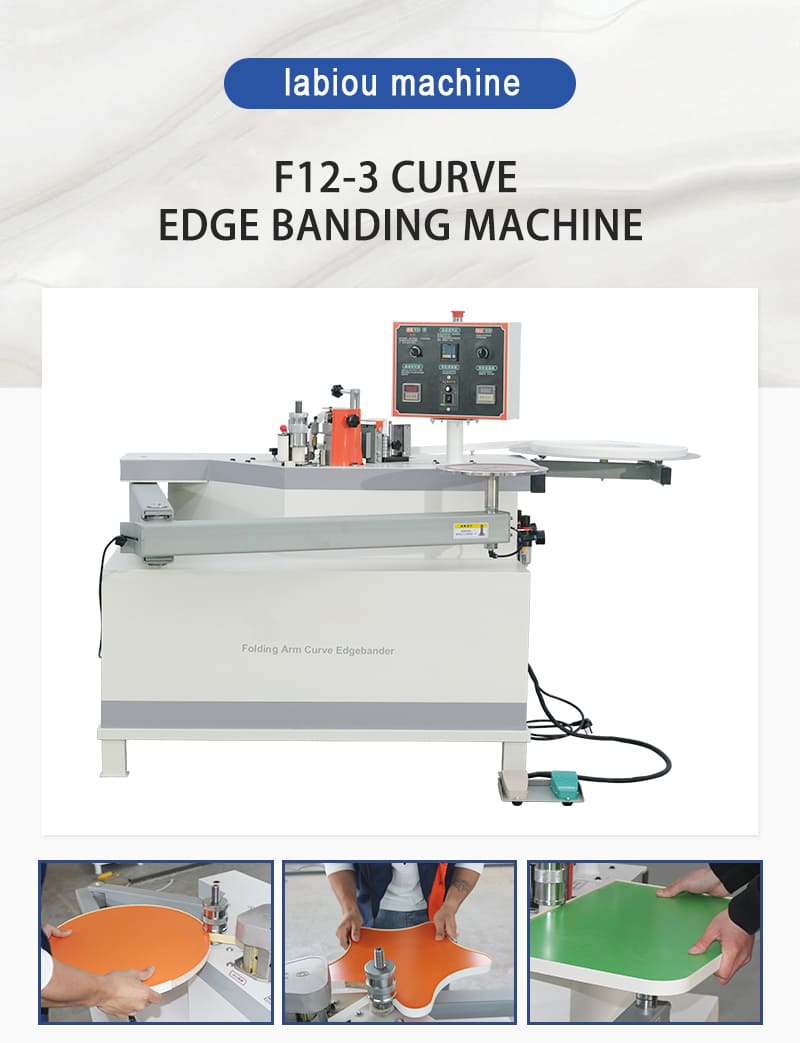

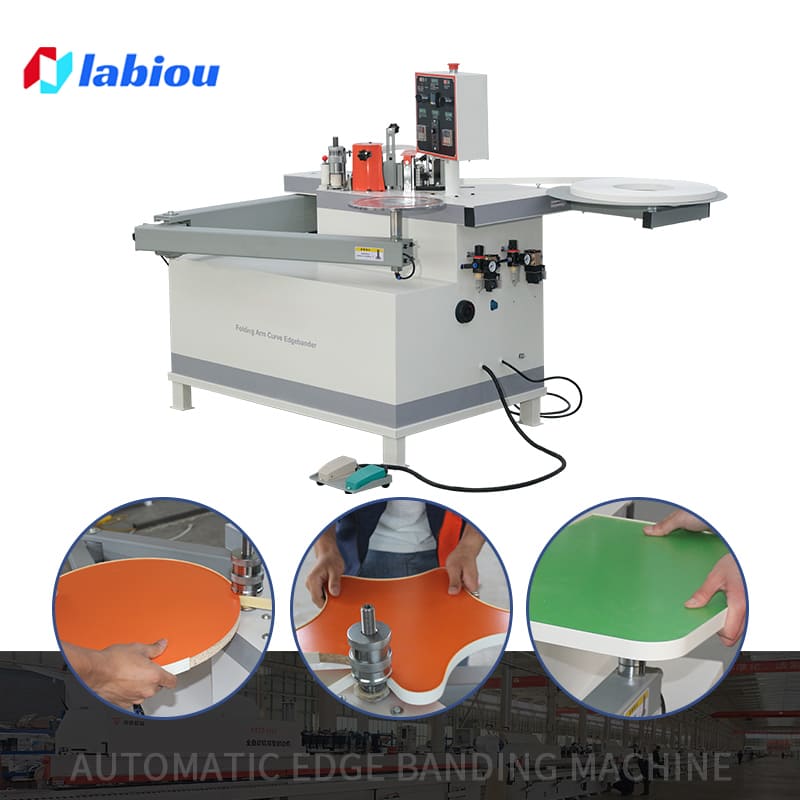

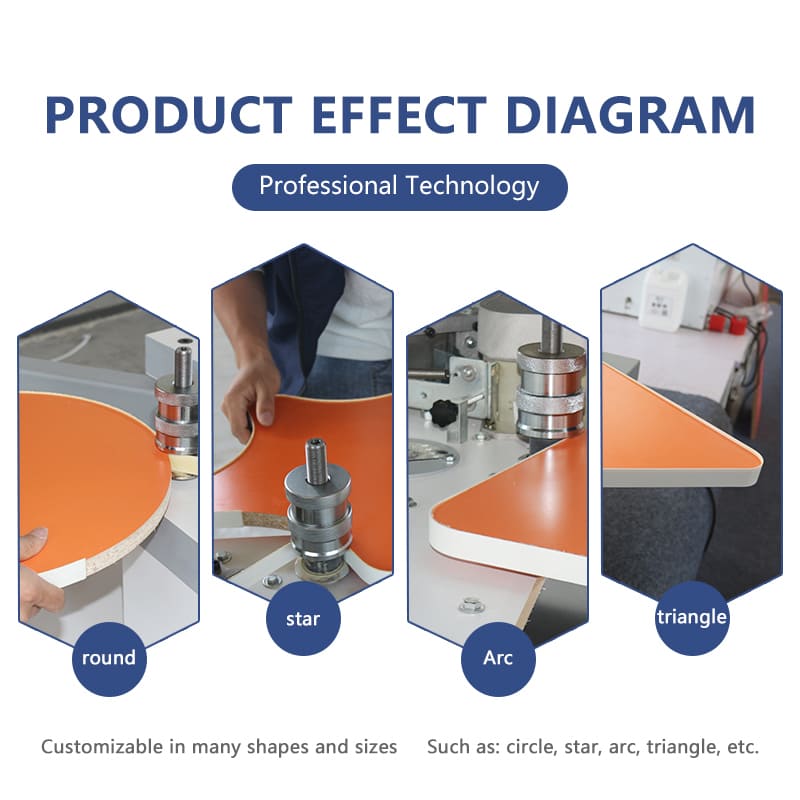

·Stacked arm design, imitating human body folding arm design, curved edge sealing is flexible and efficient, strong suction cup, firmly adsorbs the board (more flexible and efficient than countertop sealing board)

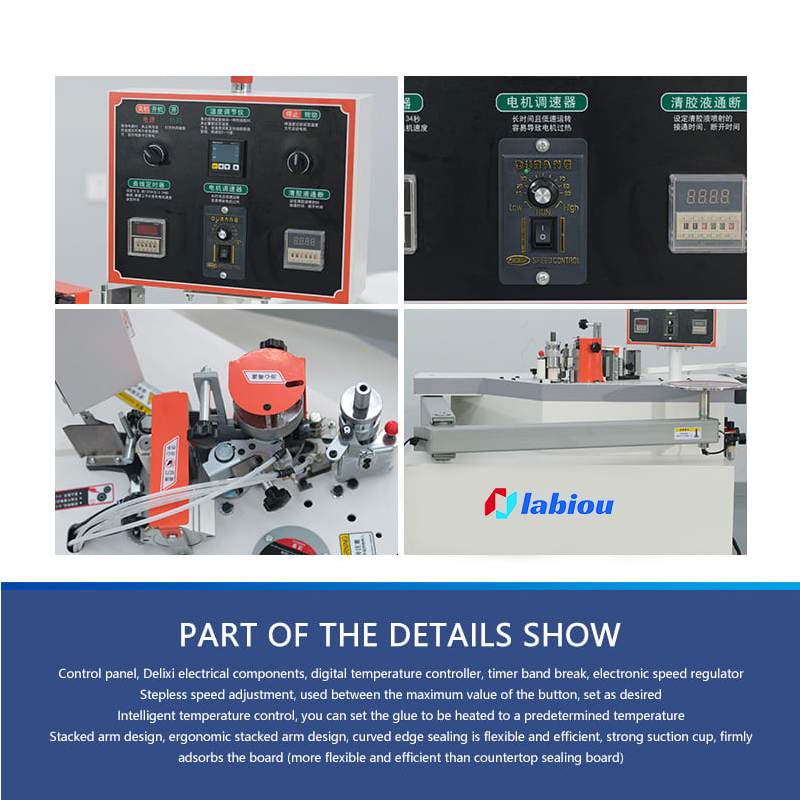

·The control panel adopts Delixi electrical components, digital temperature controller, timer disconnection, and electronic speed regulator.

·Bearing-type pressure plate and large knob make it easy to adjust the gap between the edge banding strip and the glue application roller to ensure uniform glue application.

·Dual cylinders automatically feed and cut off the tape. During edge banding, the tape is cut off under the control of a curve timer or foot pedal.

·Position the small white shaft, keep the suction cup parallel to the small white shaft, remove the small white shaft, and the suction cup can be directly fixed to the sealing plate (the rubber ring needs to be removed)

·Stepless speed adjustment, used between the maximum value of the button, set as desired

·Intelligent temperature control, you can set the glue to be heated to a predetermined temperature

Parameter:
