Shop our Variable Speed Peristaltic Pump for precise fluid control in laboratory and industrial applications. With adjustable flow rates, high accuracy, and versatile performance, it's perfect for che
Features:
* University laboratory and research institute
* Matching with analytical instrument
* Metal surface treatment and coating process
* Water treatment sampling
* Liquid chromatography
* Assort with dry granulating machine
* Filtration of cell culture fluid
| Drive model | BT100M | BT300M | BT600M |
| Speed range | 0.1~100rpm（reversible） | 0.1~300rpm（reversible） | 0.1~600rpm（reversible） |
| speed resolution | 0.1rpm | ||
| Flow range | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Accuracy | ＜±0.5% | ||
| Flow calibration | Yes | ||
| Control Method | Rotary encoded knob | ||
| Display Mode | 4-LED display | ||
| Suckback speed | 10~100rpm | 10~300rpm | |
| Power supply | AC220V±10%(standard) or AC110V±10%(optional) | ||
| Power consumption | ＜22W | ＜35W | ＜50W |
| Environment Temperature | 0~40℃ | ||
| Relatively Humidity | ＜80%， No condensation | ||
| Drive size | 234×154×143（mm） | 254×184×150（mm） | |
| Drive weight | 5.15kg | 5.15kg | 5.8kg |
| Motor type | Stepper motor | ||
| IP grade | IP31 | ||
| Working mode | Transmission mode | ||
| External control | Start/stop, direction, speed (optional) RS485 serial communication | ||
| Working environment relative humidity, no condensation | |||
| Rev. Stop status signal output | switching value signal output | ||
| Direction status signal output | switching value signal output | ||
| External control interface | DB-15 | ||
| External control | Control Rev. Stop,Direction,Speed.-Support RS485/MODBUS communication protocol , analog quantity control (0-5V 0-10V 4-20mA ...)foot switch control. | ||
| Suitable pump head & Flow reference (ml/min) | ||||||
| Pump head | YZ1515x | ZN15 | YZ2515x | ZN25 | DG1~12（6） | DG1~12（10） |
| Tube | 13/14/19/16/25/17/18# | 15#,24# | 0.5*0.8,1*1,2*1,2.4*0.8,3*1 | |||
| BT100M | 0.007~380 | 0.17~290 | 0.002~36 | 0.0015~27 | ||
| BT300M | 0.007~1140 | 0.17~870 | / | / | ||
| BT600M | 0.007~2280 | 0.17~1740 | / | / | ||
Introduction:

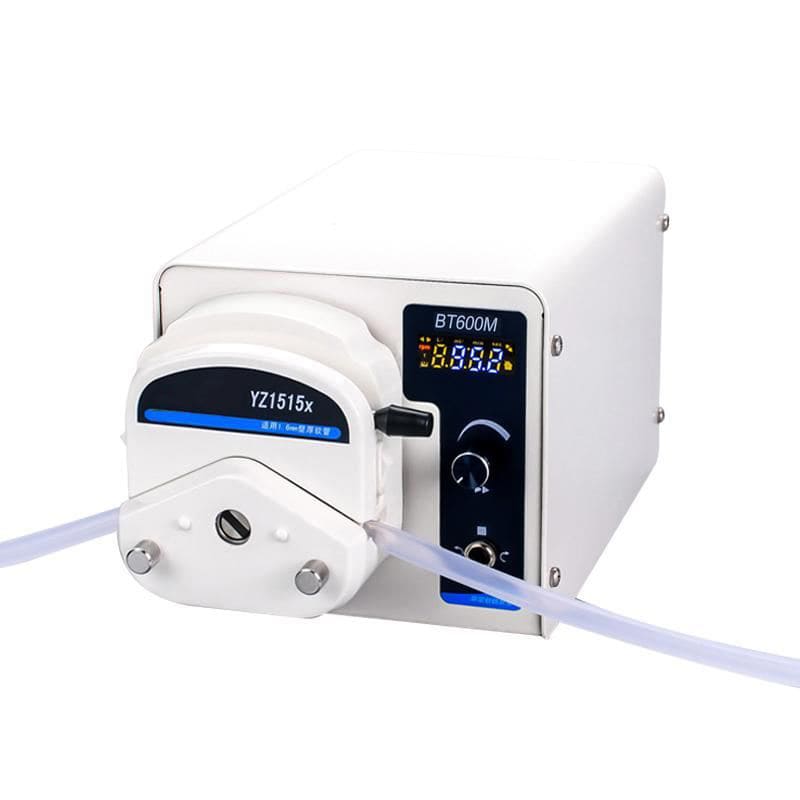

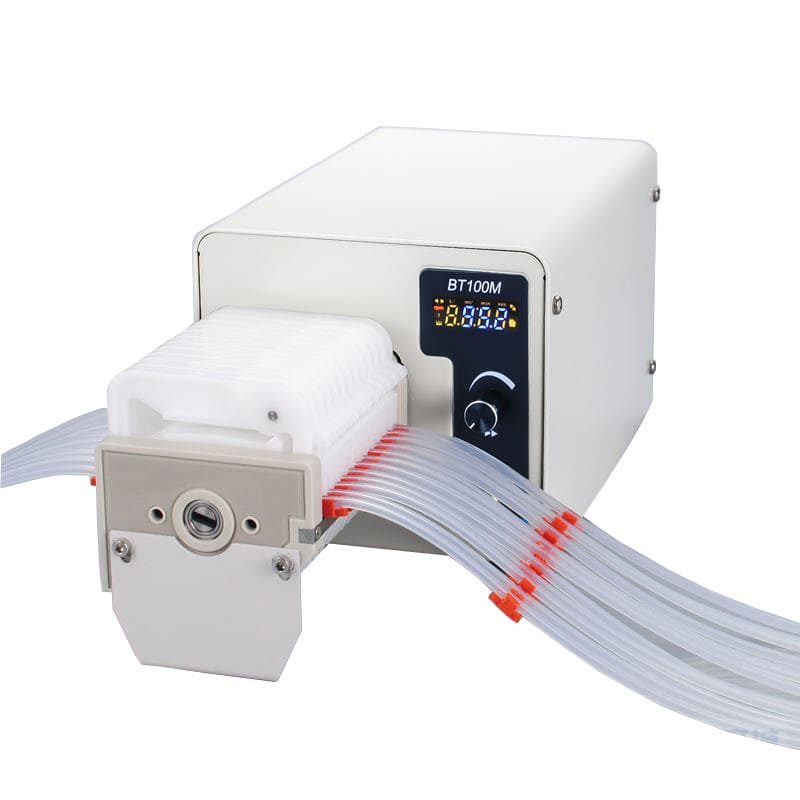

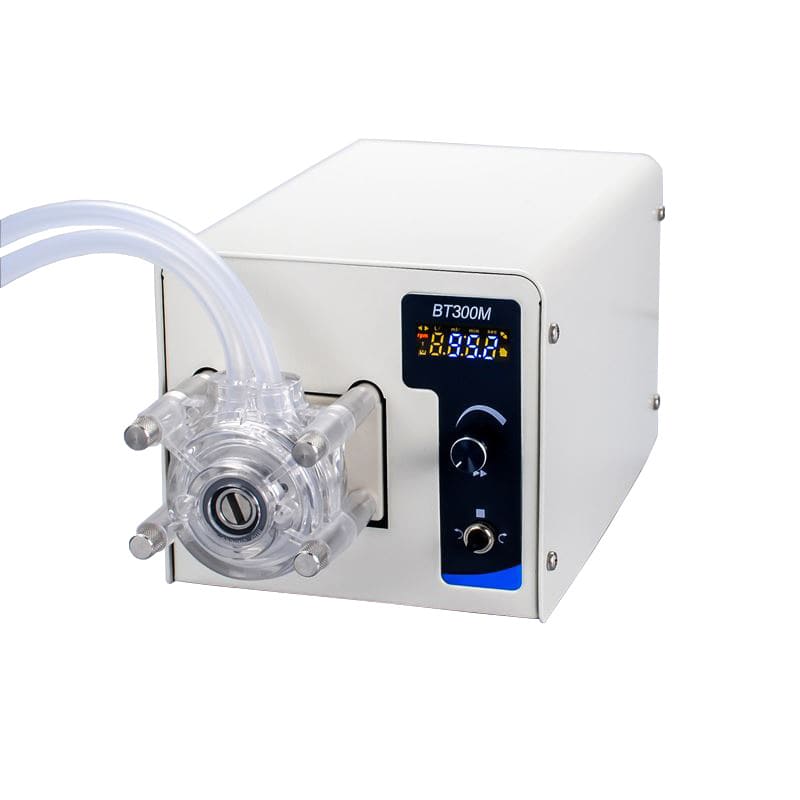

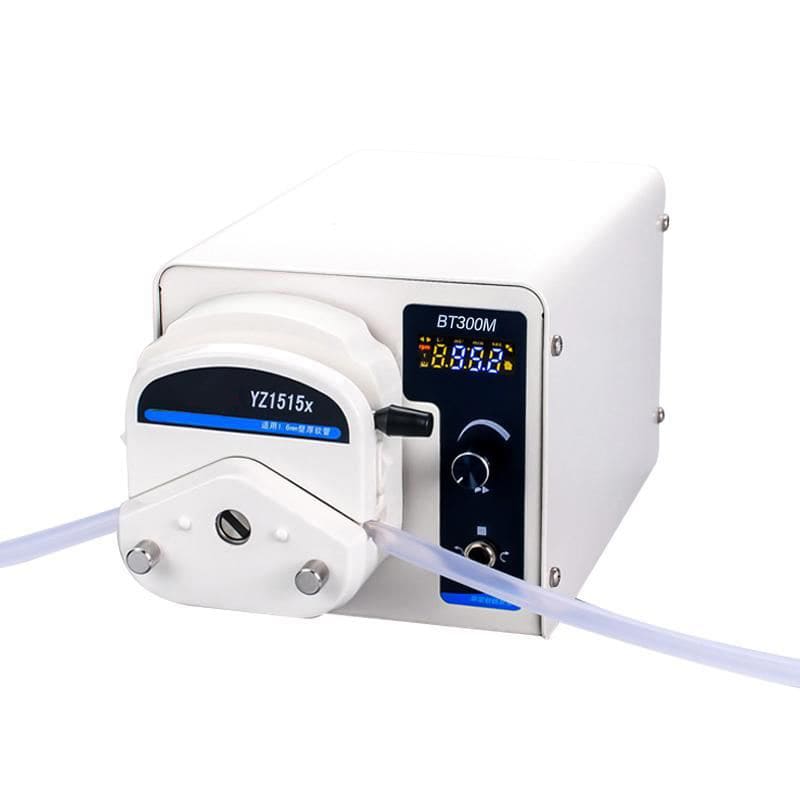

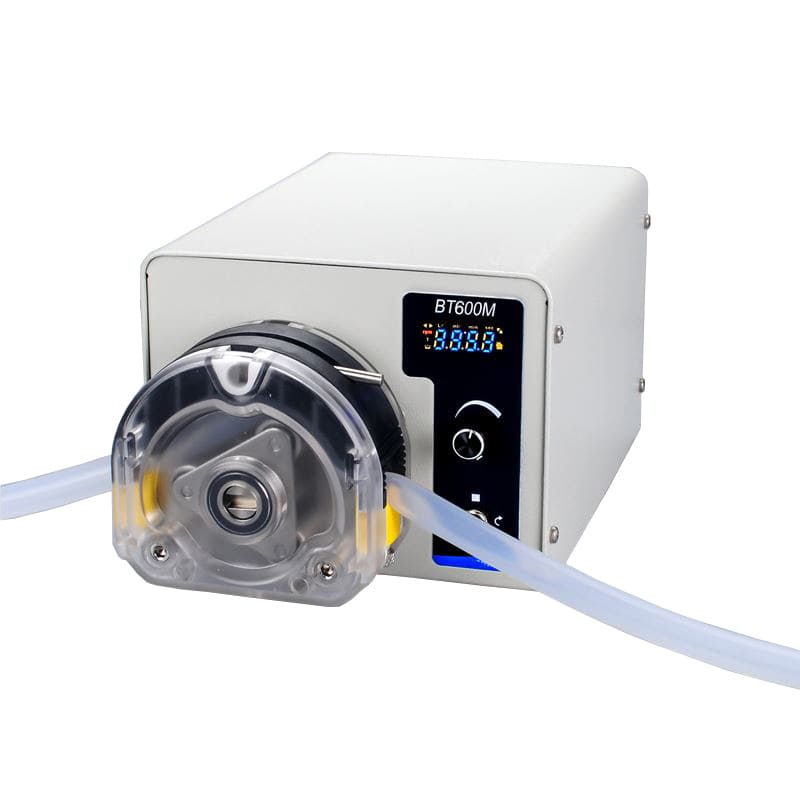

The Variable Speed Peristaltic Pump is engineered to provide reliable and precise fluid handling across a wide range of laboratory and industrial applications. Featuring adjustable speed control, this peristaltic pump ensures accurate fluid delivery, making it ideal for tasks that require consistent and flexible fluid management.
Variable Speed Control: Easily adjust the flow rate to meet specific application needs, providing flexibility for different types of fluids.
High Precision: Delivers precise fluid handling, ensuring consistent and accurate dispensing, ideal for applications in chemical dosing, pharmaceutical research, and laboratory experiments.
Versatile Applications: Suitable for laboratory research, chemical processing, food and beverage production, water treatment, and pharmaceutical industries.
Durable and Reliable: Built with high-quality materials to ensure long-term, reliable performance in demanding environments.
User-Friendly Interface: Simple controls make it easy for users to set and monitor flow rates, enhancing operational efficiency.
Quiet Operation: Operates quietly, reducing noise in laboratory and industrial environments, and making it suitable for continuous use.
Safe and Efficient: Designed with safety features such as overcurrent protection to prevent system overloads, ensuring smooth and safe operation at all times.
Compact Design: The compact, space-saving design fits easily into labs or industrial workspaces, making it ideal for environments with limited space.
This Variable Speed Peristaltic Pump offers high performance and precise control over fluid delivery, whether you're conducting laboratory research, dosing chemicals, or processing fluids in an industrial setting. With its customizable flow rate and durable construction, it's an essential tool for efficient fluid management.
| Drive model | BT100M | BT300M | BT600M |
| Speed range | 0.1~100rpm（reversible） | 0.1~300rpm（reversible） | 0.1~600rpm（reversible） |
| speed resolution | 0.1rpm | ||
| Flow range | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Accuracy | ＜±0.5% | ||
| Flow calibration | Yes | ||
| Control Method | Rotary encoded knob | ||
| Display Mode | 4-LED display | ||
| Suckback speed | 10~100rpm | 10~300rpm | |
| Power supply | AC220V±10%(standard) or AC110V±10%(optional) | ||
| Power consumption | ＜22W | ＜35W | ＜50W |
| Environment Temperature | 0~40℃ | ||
| Relatively Humidity | ＜80%， No condensation | ||
| Drive size | 234×154×143（mm） | 254×184×150（mm） | |
| Drive weight | 5.15kg | 5.15kg | 5.8kg |
| Motor type | Stepper motor | ||
| IP grade | IP31 | ||
| Working mode | Transmission mode | ||
| External control | Start/stop, direction, speed (optional) RS485 serial communication | ||
| Working environment relative humidity, no condensation | |||
| Rev. Stop status signal output | switching value signal output | ||
| Direction status signal output | switching value signal output | ||
| External control interface | DB-15 | ||
| External control | Control Rev. Stop,Direction,Speed.-Support RS485/MODBUS communication protocol , analog quantity control (0-5V 0-10V 4-20mA ...)foot switch control. | ||
| Suitable pump head & Flow reference (ml/min) | ||||||
| Pump head | YZ1515x | ZN15 | YZ2515x | ZN25 | DG1~12（6） | DG1~12（10） |
| Tube | 13/14/19/16/25/17/18# | 15#,24# | 0.5*0.8,1*1,2*1,2.4*0.8,3*1 | |||
| BT100M | 0.007~380 | 0.17~290 | 0.002~36 | 0.0015~27 | ||
| BT300M | 0.007~1140 | 0.17~870 | / | / | ||
| BT600M | 0.007~2280 | 0.17~1740 | / | / | ||
