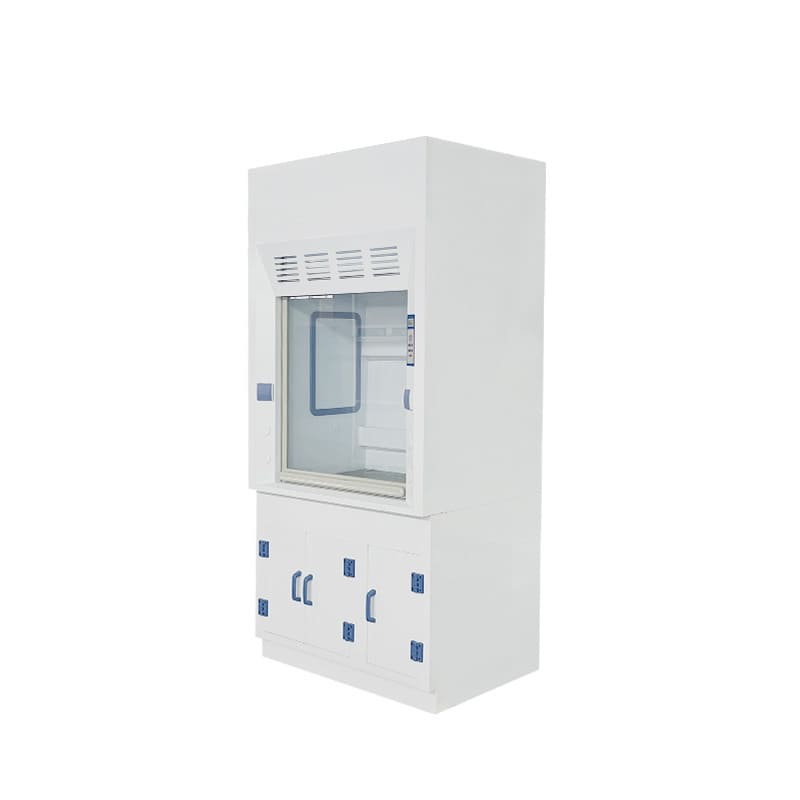

Shop our high-quality PP Spray Fume Hood for safe and efficient chemical fume containment in laboratory and industrial settings. Durable, reliable, and designed for optimal airflow to ensure a safe wo
Features:
* Made of PP material, integrally welded
* Resistant to strong acid, alkali and strong corrosion
* Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional
* The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then discharge it
* The control panel can control the lighting system, circuit system, and air volume adjustment system
* Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet structure, and complete circulating water circuit
| Model | FH1000PL | FH1200PL | FH1500PL | FH1800PL |
| External Size (W*D*H) | 1047*800*2450mm； | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450mm |
| Internal Size (W*D*H) | 787*500*700mm | 987*500*700mm | 1287*500*700mm | 1587*500*700mm |
| Work Surface Height | 820mm | |||
| Max. Opening | 740mm | |||
| Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||
| Work Table: Solid core physical and chemical board | ||||
| Airflow Velocity | 0.3～0.8m/s | |||
| Exhaust volume | 560 m³/h | 700 m³/h | 920 m³/h | 1130 m³/h |
| Consumption | 400 W+370W(Pump) | 500 W + 370(Pump) | 700 W + 370(Pump) | |
| Waterproof Socket | Two, total load≤500W | |||
| Noise | ≤68dB（A） | |||
| Illumination | ≥400lx | |||
| LED Lamp | 24W | 30W | 38w | |
| Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | |||
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | |||
| Operators | 1~2 | 1~2 | 2~3 | 2~3 |
| Standard Accessory | LED light; | |||
| Work table: Chemical resistant phenolic resin; | ||||
| 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm; | ||||
| Pipe strap*2(4 pcs for FH1800(P) only); | ||||
| Base cabinet; | ||||
| Waterproof socked*2; | ||||
| Water tap(PP); | ||||
| Gas tap(PP); | ||||
| Water Sink; | ||||
| PP centrifugal blower*1(2 for FH1800(P) only) | ||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board; | |||
| UV lamp; | ||||
| Electric glass door | ||||
| Power Supply | 220V,50/60Hz(Standard); 110V,60Hz(Optional) | |||
| Package Size (W*D*H) | Main Body:1188*938*1612mm | Main Body:1388*938*1612mm | Main Body:1688*938*1612mm | Main Body:1988*938*1612mm |
| Base Cabinet:1188*888*1000mm | Base Cabinet:1388*888*1000mm | Base Cabinet:1688*888*1000mm | Base Cabinet:1988*888*1000mm | |
| Gross Weight | 235kg | 268kg | 308kg | 360kg |
Introduction:
The PP Spray Fume Hood is a high-performance ventilation solution designed to provide safe and efficient containment of hazardous fumes and chemicals in laboratory and industrial environments. Made from durable polypropylene (PP), this fume hood is resistant to corrosive chemicals, ensuring long-term performance and reliability in demanding applications. It is perfect for use in chemical laboratories, industrial facilities, and spray booths where proper air ventilation and fume extraction are crucial for safety.
Durable PP Construction: Built from high-quality polypropylene (PP) material, the fume hood offers excellent resistance to corrosive chemicals, acids, and solvents, ensuring longevity and reliable performance.
Efficient Fume Extraction: Designed with powerful fans and advanced airflow technology, the PP Spray Fume Hood quickly removes harmful fumes, vapors, and airborne particulates, keeping the air clean and safe.
Optimal Safety: Protects laboratory workers and personnel from inhaling harmful fumes by containing them within the hood, reducing the risk of exposure to toxic or flammable chemicals.
Versatile Use: Ideal for chemical laboratories, spray painting areas, industrial facilities, and any environment where chemical fume containment is required.
User-Friendly Design: Equipped with a simple control panel and adjustable settings, allowing users to easily control the airflow and ventilation rates based on the application’s requirements.
Compact and Space-Saving: Designed to fit in laboratories and industrial settings without taking up too much space, while still providing ample workspace for conducting experiments or handling hazardous materials.
Easy Maintenance: The fume hood is easy to clean and maintain, with a smooth interior surface that resists chemical buildup, ensuring hassle-free upkeep.
Energy Efficient: The fan and ventilation system are designed for optimal energy consumption, reducing operational costs while maintaining effective fume extraction.
High Airflow Efficiency: Ensures high-quality fume removal, preventing dangerous chemical exposure and improving indoor air quality in work environments.
The PP Spray Fume Hood is an essential piece of equipment for ensuring safety and health in environments where chemicals and hazardous substances are used. Its reliable fume extraction system, combined with durable PP construction, offers a robust solution for a variety of laboratory and industrial applications.
| Model | FH1000PL | FH1200PL | FH1500PL | FH1800PL |
| External Size (W*D*H) | 1047*800*2450mm； | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450mm |
| Internal Size (W*D*H) | 787*500*700mm | 987*500*700mm | 1287*500*700mm | 1587*500*700mm |
| Work Surface Height | 820mm | |||
| Max. Opening | 740mm | |||
| Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||
| Work Table: Solid core physical and chemical board | ||||
| Airflow Velocity | 0.3～0.8m/s | |||
| Exhaust volume | 560 m³/h | 700 m³/h | 920 m³/h | 1130 m³/h |
| Consumption | 400 W+370W(Pump) | 500 W + 370(Pump) | 700 W + 370(Pump) | |
| Waterproof Socket | Two, total load≤500W | |||
| Noise | ≤68dB（A） | |||
| Illumination | ≥400lx | |||
| LED Lamp | 24W | 30W | 38w | |
| Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | |||
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | |||
| Operators | 1~2 | 1~2 | 2~3 | 2~3 |
| Standard Accessory | LED light; | |||
| Work table: Chemical resistant phenolic resin; | ||||
| 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm; | ||||
| Pipe strap*2(4 pcs for FH1800(P) only); | ||||
| Base cabinet; | ||||
| Waterproof socked*2; | ||||
| Water tap(PP); | ||||
| Gas tap(PP); | ||||
| Water Sink; | ||||
| PP centrifugal blower*1(2 for FH1800(P) only) | ||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board; | |||
| UV lamp; | ||||
| Electric glass door | ||||
| Power Supply | 220V,50/60Hz(Standard); 110V,60Hz(Optional) | |||
| Package Size (W*D*H) | Main Body:1188*938*1612mm | Main Body:1388*938*1612mm | Main Body:1688*938*1612mm | Main Body:1988*938*1612mm |
| Base Cabinet:1188*888*1000mm | Base Cabinet:1388*888*1000mm | Base Cabinet:1688*888*1000mm | Base Cabinet:1988*888*1000mm | |
| Gross Weight | 235kg | 268kg | 308kg | 360kg |
